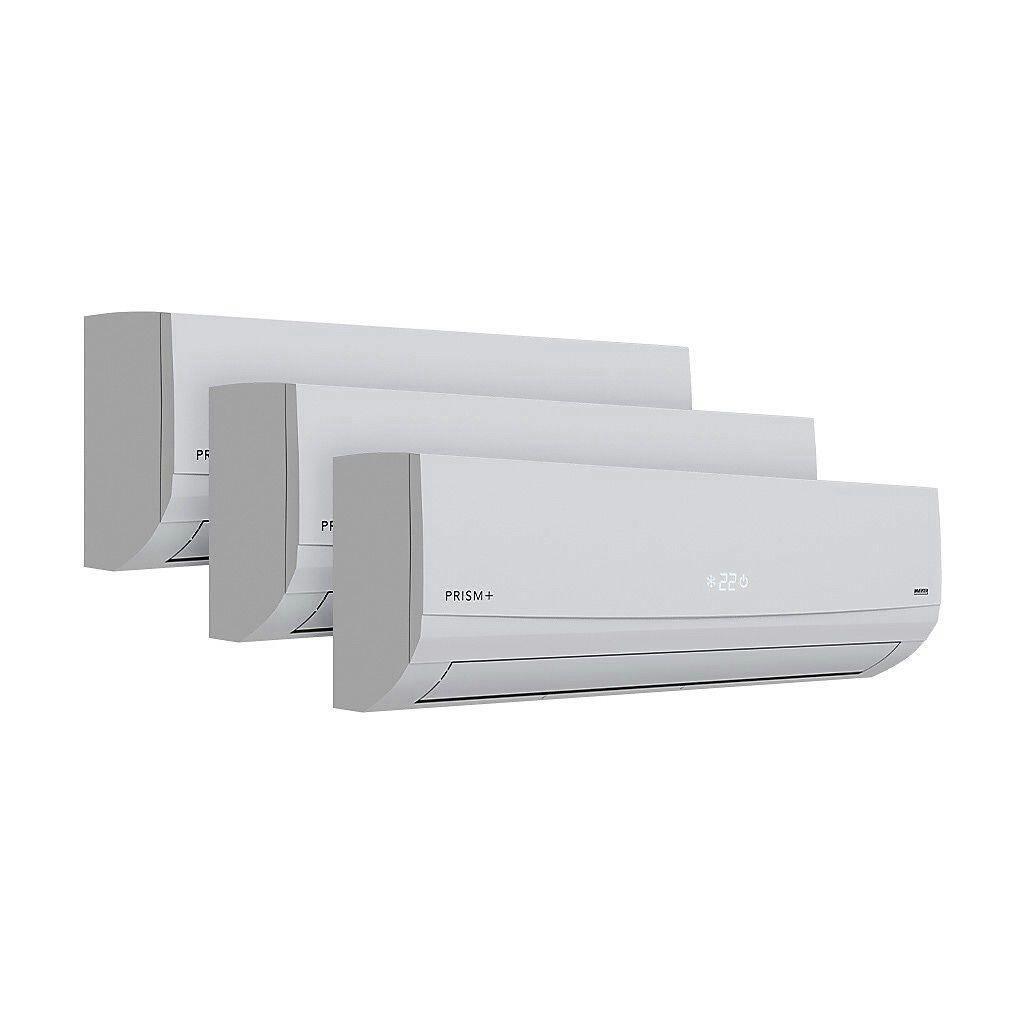

PRISM+ Zero

PRISM+ Zero

Smart Air Conditioner (R32, 5-ticks)

×

PRISM+ Zero

Technical Information
Indoor Unit

Model PRFZ09 PRFZ12 PRFZ18 PRFZ24
Capacity (Cooling) 2.70 kW 3.52 kW 5.28 kW 7.10 kW
Capacity (Cooling) 9212 btu/h 12010 btu/h 18015 btu/h 24200 btu/h
Air Flow Volume (SH/H/M/L) 720 / 640 / 520 / 360 m3/h 720 / 640 / 520 / 360 m3/h 800 / 730 / 630 / 530 m3/h 1300 / 1200 / 1100 / 900 m3/h
Sound Pressure Level (SH/H/M/L) 41 / 38 / 33 / 28 dB(A) 41 / 39 / 34 / 29 dB(A) 48 / 43 / 39 / 34 dB(A) 58 / 55 / 49 / 46 dB(A)
Dimension Outline
(WxHxD)
845 x 289 x 209 mm 845 x 289 x 209 mm 970 x 300 x 224 mm 1078 x 325 x 246 mm
Net Weight / Gross Weight 10kg / 12kg 10kg / 12kg 13kg / 16kg 16kg / 19kg

Technical Information

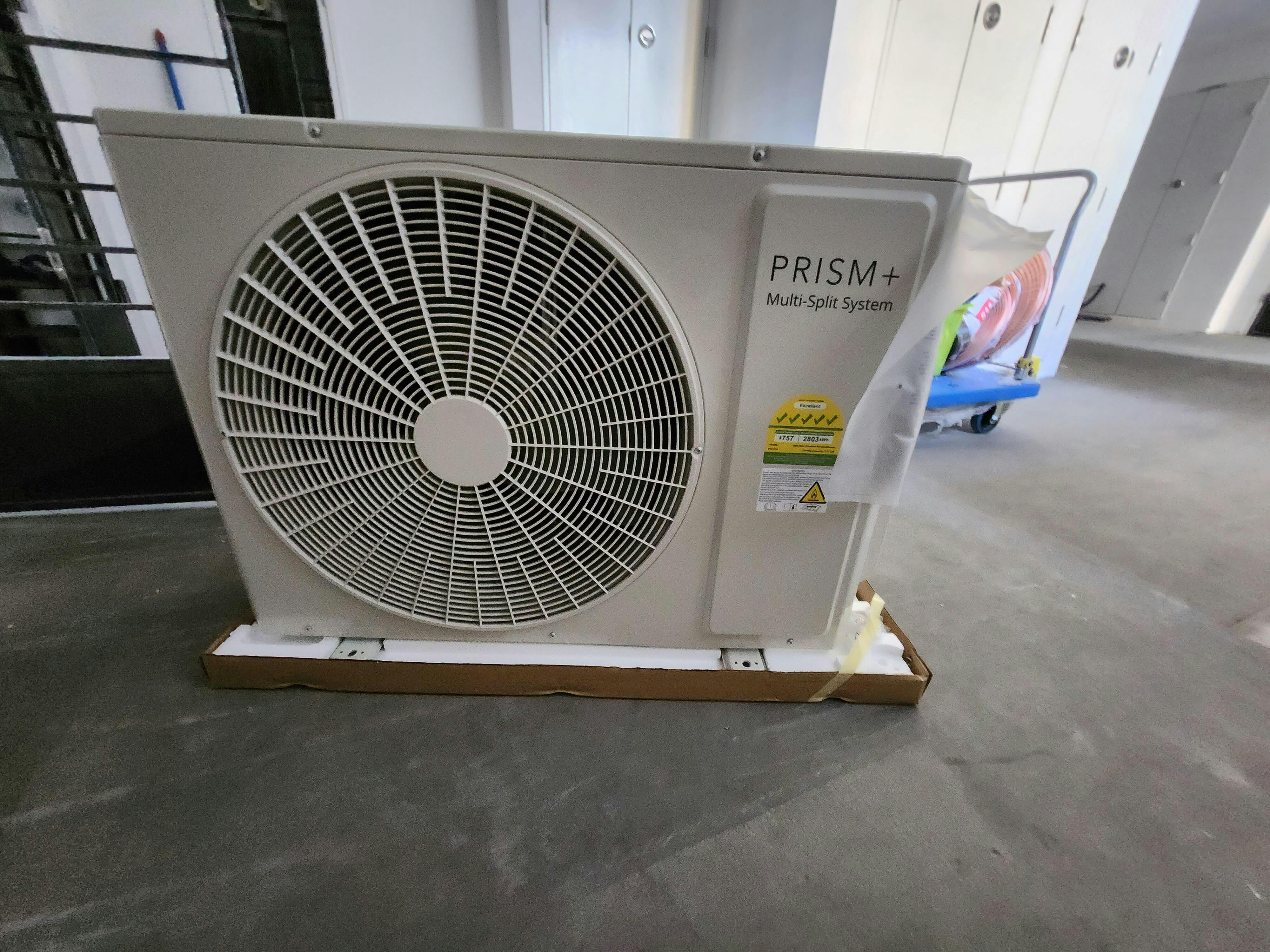

Outdoor Unit

Model PRCZ28 PRCZ36
Capacity (Cooling) 6.2 (2.1-8.3)kW 7.2 (2.2-10.55)kW
Capacity (Cooling) 21000 (7200-28300) btu/h 24600(7500-36000) btu/h
Running Current PRCZ28 - 5.93A PRCZ36 - 6.86A
Power Input (Cooling) 1.270 kW 1.480 kW
Refrigerant Charge Volume 1.6kg 1.7kg
Air Flow Volume 3800 m3/h 3800 m3/h
Sound Pressure Level 54 dB(A) 54 dB(A)
Dimension Outline (WxHxD) 964 x 660 x 402 mm 964 x 660 x 402 mm
Net Weight / Gross Weight 46.5kg / 51.0kg 48.0kg / 52.5kg

Warranty

Standard Warranty 1 year on Fan Coil Unit, 5 years on Compressor Only
(Labour and Transport Included)
Extended Warranty* 8 years on both Fan Coil Unit and Condenser Unit (Labour and Transport Included) *Only applies if quarterly general servicing is conducted with PRISM+

Common Additional Charges

Below, you'll find a list of typical supplementary fees displayed in the table. Any additional charges not visible in the table that may be necessary will be communicated and validated by our air conditioning experts during the on-site assessment.

Installation Type Installation Details Price Unit Payment
Aircon Pressure Test Pressure test on existing refrigerant pipes to check for gas leakage. Gas top-up not included. $120 Per Set of Piping Invoice will be sent by the ops team after site survey
Ceiling/Partition Work Cut, patch, and touch up paint for each ceiling hole. Use Nippon Matex White 9102 paint only. $80 Per Hole Invoice will be sent by the ops team after site survey
Extra Trip - Installation Extra trip required for installation. $180 Per Day Invoice will be sent by the ops team after site survey
Insulation Upgrade - 3/4" Armaflex Class "0" Insulation Upgrade insulation thickness to 3/4". $100 Per Aircon Unit Invoice will be sent by the ops team after site survey
Long Pipe Run For piping routes that exceed 15m in length. From $150 Per Route Invoice will be sent by the ops team after site survey
Modification of Cornice (with Patching) Cut, patch, and touch up paint for each modified cornice. Use Nippon Matex White 9102 paint only. $150 Per Cornice Invoice will be sent by the ops team after site survey
Outdoor Unit Bracket Installation of outdoor unit brackets; removal of existing brackets will be complimentary. From $180 Per Bracket Invoice will be sent by the ops team after site survey
Pelmet - Creation Cut, patch, and touch up paint for each pelmet hole. Use Nippon Matex White 9102 paint only. $300 For 1 Pelmet Hole Invoice will be sent by the ops team after site survey
$250 Per Pelmet (More Than 1 Hole)
Replacement of Aluminium Sheet and Plywood Panel (Window Opening Bracket) Installation of aluminium sheet and plywood panel to cover window openings; removal of existing panels will be complimentary. $100 Per Window Opening Invoice will be sent by the ops team after site survey
Working at Height For placement of indoor or outdoor units 3.5m above ground. $250 Per Indoor/Outdoor Unit Invoice will be sent by the ops team after site survey
$2,499
voucher-icon $2,499

Maximize Your Savings & Lower Your Upfront Cost

1PROMO CODES

Proceed to checkout & key in the promo code

PRISM200$200 Off 2 Units

PRISM400$400 Off 3 Units

PRISM500$500 Off 4 Units

2SPLIT YOUR PAYMENT

Select Atome or Grab & checkout on their app

3x payments grab pay 4x payments grab pay

*Transactions above $3,000 will have to be paid in full via GrabPay Wallet.
PayLater by Grab transactions are subjected to a maximum limit of $3,000.

$3,049

As a direct-to-consumer brand, we convert any costs that would have gone to a middleman into savings for you. Save up to 33% compared to traditional brands.

18% OFF!
From 3x $766 w/ grab pay or 4x $574 w/ grab pay

Maximize Your Savings & Lower Your Upfront Cost

1PROMO CODES

Proceed to checkout & key in the promo code

PRISM200$200 Off 2 Units

PRISM400$400 Off 3 Units

PRISM500$500 Off 4 Units

2SPLIT YOUR PAYMENT

Select Atome or Grab & checkout on their app

3x payments grab pay 4x payments grab pay

*Transactions above $3,000 will have to be paid in full via GrabPay Wallet.
PayLater by Grab transactions are subjected to a maximum limit of $3,000.

Cool your home effortlessly with our first 5 ticks smart aircon, complete with a dedicated app and inverter technology to help you save more.

Select Number of Aircon Units

2 Units
3 Units
4 Units

Select aircon BTU combinations

ADVISORY: Singapore’s temperatures are expected to rise to its highest ever. The average wait time for aircon installations across the country will be longer now. Reserve your installation date before it’s too late.

Free site visit and installation can be completed within 1-2 weeks from the date of order.

Stocks arrive late August 2022

GET IT NOW

**Prices displayed here include a free site survey and standard HDB installation (exposed trunking only)

**Additional charges appended here may apply for, but not limited to, pipe lengths exceeding 15m, electrical works, condensing unit bracket, ceiling/partition/box-up works/cornice works, hacking/concealment works.

Cool your home effortlessly with our first 5 ticks smart aircon, complete with a dedicated app and inverter technology to help you save more.

grabpay No Hidden Fees
grabpay Earn Rewards
grabpay Flexible Payment

What you pay today

$0

if you choose to pay next month with PayLater postpaid

or

$624

if you choose to pay in 4 interest-free installments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Grab as your payment method.
grabpay

Pay for your purchase in 3 interest-free instalments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Atome as your payment method.
pacepay

Pay for your purchase in 3 interest-free instalments.

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Pace as your payment method.
bnpl-codes bnpl-codes
bnpl-codes bnpl-codes
bnpl-codes bnpl-codes
oasis-sizes
oasis-sizes

Ceiling Fan Size & Clearance

oasis-sizes oasis-sizes

*A minimum clearance from the tip of the blades to the nearest ceiling fixture is critical to allow unrestricted airflow and to prevent unwanted noise or fan wobbling.

oasis-sizes
oasis-sizes
btu-combination btu-combination
spec-icon

SmartHome App

spec-icon

5 Tick Energy Efficiency

spec-icon

Up to 8 Years Warranty

spec-icon

R32 Eco-Friendly Refrigerant

spec-icon

PM 2.5 Air Filters

spec-icon

In-house Servicing

PRISM+ vs Traditional Brands

PRISM+ Traditional Brands
Pricing*After vouchers applied System 2 (9K/9K) $2,299 $3,049
System 3 (9K/9K/9K) $2,899 $3,749
System 4 (9K/9K/9K/18K) $3,899 $4,949
Smart Mobile App Control Remotely ?
Google Assistant Pairing ?
Routines & Automation
Data & Insights
Geofencing
Warranty** Indoor Unit Up to 8 Years 1 year
Outdoor Unit Up to 8 Years 1 year
Compressor Only Up to 8 Years 5 years
Labour and Transport Up to 8 Years 1 year
Filter Insert Change Free (twice a year) Chargeable
Installation Materials Copper Pipe 0.71mm 0.61mm to 0.71mm
tooltip
tooltip

Copper Pipe

PRISM+ uses 0.71mm Copper Pipes that are ROHS and SGS Certified that are more durable, ensuring that hazardous substances are kept within the safety limit.
Trunking Litaflex (Thicker) OEM Brands (Thinner)
tooltip
tooltip

Trunking

Litaflex trunking is made of high impact grade uPVC that is highly weather resistant and will retain its shape better after installation, preventing unsightly bulges.
Insulation Armaflex Class 0 OEM Class 1 & above
tooltip
tooltip

Insulation

Rated “Excellent” by the Singapore Green Building Council, Armaflex Class 0 insulation conforms to the highest standard when it comes to fire performance, with no flame spread.

It is also environmentally safe and has zero ozone depletion and global warming potential.
Cables Keystone (Local Brand) OEM Brands (Non-local)
tooltip
tooltip

Cables

Keystone cables use thicker stands of copper as compared to other OEM brands, allowing them to withstand a heavier electrical load while enhancing durability.

*Additional charges apply for non-standard pipe-runs.

**Enjoy 8 Years Full Coverage Warranty if quarterly servicing is done with us. Otherwise, standard warranty terms apply.

The First Local Smart Aircon

Transform your home into a cool oasis with the PRISM+ Zero Smart Aircon. Outfitted with the latest technology, keep your house cool and save on energy bills with full control of your aircon system with the PRISM+ Connect App.

Apple Download Icon
app-gif
app-gif

*Smart devices are only compatible with 2.4GHz band

monitor w270 - 2
Up to 8 Years Warranty

Quality You Can Trust

Enjoy the longest and most comprehensive aircon warranty program with PRISM+. Enjoy up to 8 years of coverage on both indoor and compressor units by opting for quarterly servicing of your aircon with us.

Eco-Friendly R32 Refrigerant

Better for the Environment

When compared to other commonly used aircon refrigerants, R32 has zero ozone depleting potential. Being low-toxic it is less volatile and easier to reuse and recycle. Best of all, it helps save on your bills with less refrigerant required per kilowatt.

monitor w270 - 3
monitor w270 - 2
monitor w270 - 2
5 Ticks Energy Rating

Cool Rooms, Low Bills

Awarded with 5 ticks for its energy efficiency, the PRISM+ ZERO inverter uses significantly less energy than a non-inverter aircon. Simply set your desired temperature and let our compressor heat up and cool down your surroundings accordingly.

Ionizing Air Purification

Fresher, Cleaner Air

Enjoy improved air quality around your home with a built-in air ionizer. Eliminate bacteria, mold and other harmful contaminants through the release of negative ions to neutralize any impurities in the air.

monitor w270 - 2
monitor w270 - 2
monitor w270 - 2
monitor w270 - 3
Premium Air Filters

Expert Filtration for the Purest Air

The PRISM+ Zero comes outfitted with PM2.5 filters to keep air cool and fresh, filtering out 90% of dust, bacteria and other harmful particles. Suppress the growth of mold and foul odors with a carbon filtration system comprised of a micropore chitin membrane.

Self-Cleaning Mode

Low Maintenance,
High Performance

The PRISM+ ZERO takes the hassle of cleaning your aircon off your hands with an innovative self-cleaning evaporator that cleans and dries all on its own in between use.

monitor w270 - 2
monitor w270 - 2
Obsidian Seal Technology

Built to Last

Featuring our very own Obsidian Seal Technology with a five layer coating that includes antibacterial and anti-corrosive materials, the PRISM+ ZERO is resistant to corrosion, heat and even UV so your system runs as efficiently as possible.

In-house Maintenance

Trained Professionals

To better serve you, the maintenance of all aircon units is done by our experienced PRISM+ Aircon Servicing Team. Enjoy free gas top ups twice a year.

monitor w270 - 2
monitor w270 - 2
×

Aircon Maintenance Services (prices incl GST)

Only quarterly Indoor Unit General Servicing is needed to qualify for extended warranty.

Indoor Unit Waterjet Servicing*

Limited Time Offer!
1 indoor unit $54$49
2 indoor units $69$59
3 indoor units $94$79
4 indoor units $119$99
5 indoor units $144$119
6 indoor units $179$149
additional units above 6 $25$22 per unit

*Pricing is for yearly and upfront plans only.

Indoor Unit Chemical Overhaul

1 indoor unit $160
2 indoor units $300
3 indoor units $420
4 indoor units and above $130 per unit

Outdoor Unit General Servicing

per outdoor unit $50 per unit

Gas Top Up

R32 $120
R410 $120
R22 $120

Customer Reviews

Based on 1178 reviews
96%
(1130)
3%
(40)
0%
(3)
0%
(3)
0%
(2)
M
M.S.
Top notch

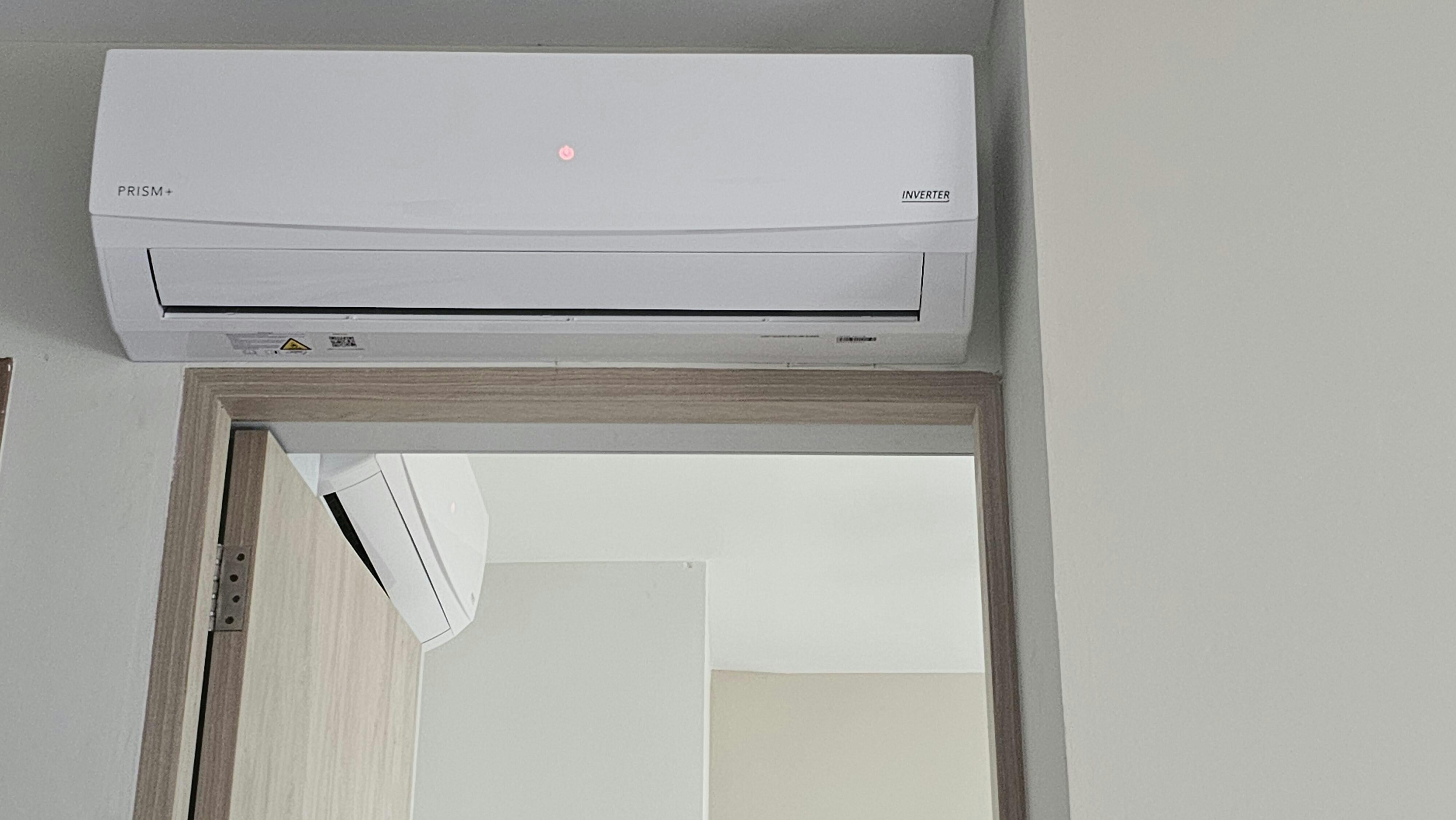

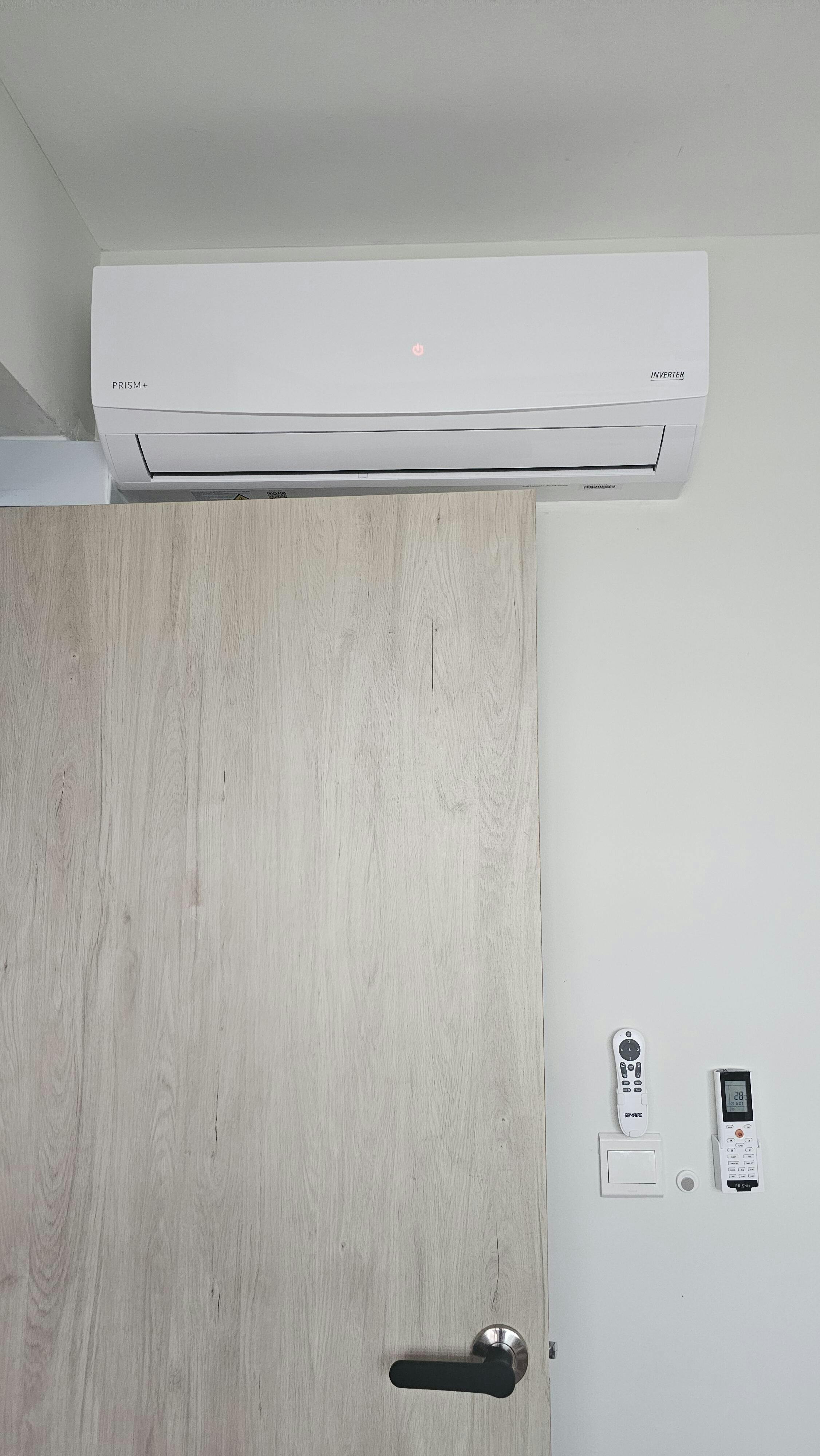

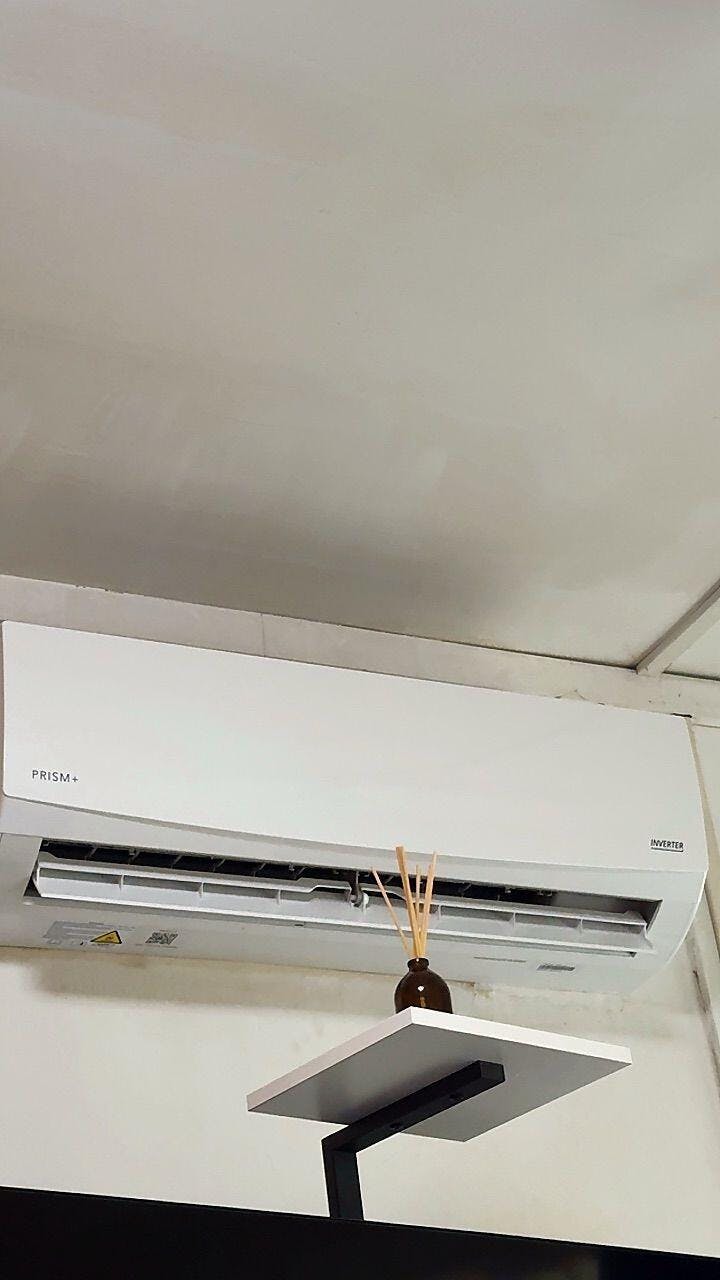

Last year december, i bought a multi-unit systems for my newly renovated house. During the process, prism staffs came 3 times to my house. The first one was recce the sites, the staffs is knowledgeable, as he saw my house, he told is to upgrade our btu for living hall as the one we order is not powerful to cover up the whole living area. So we decided to upgrade it. And it was not hard selling. Then the second time, i ask for additional onsite visit as my ID required the piping to be installed bfore carpentry. So the staffs came down and do the job, can see the job done is professional. Before the last final visit of installation, there was many delayed by my renovation side, so have to postpone the dates, and the customer service on the line is very helpful. Not difficult in getting them to change the dates. My ID made a calculation mistakes on the piping, on the day of installation, i requested the staffs to adjust the placement of the piping, and they did a good job. I am very impressed with the installers and also with their online customer service staffs. Good job guys.

Regarding the aircon, i have been using for 2 weeks. I would say, the aircon is strong and awesome.

Thank you prism. 🙏

Z
Zulhaizat
Great workmanship

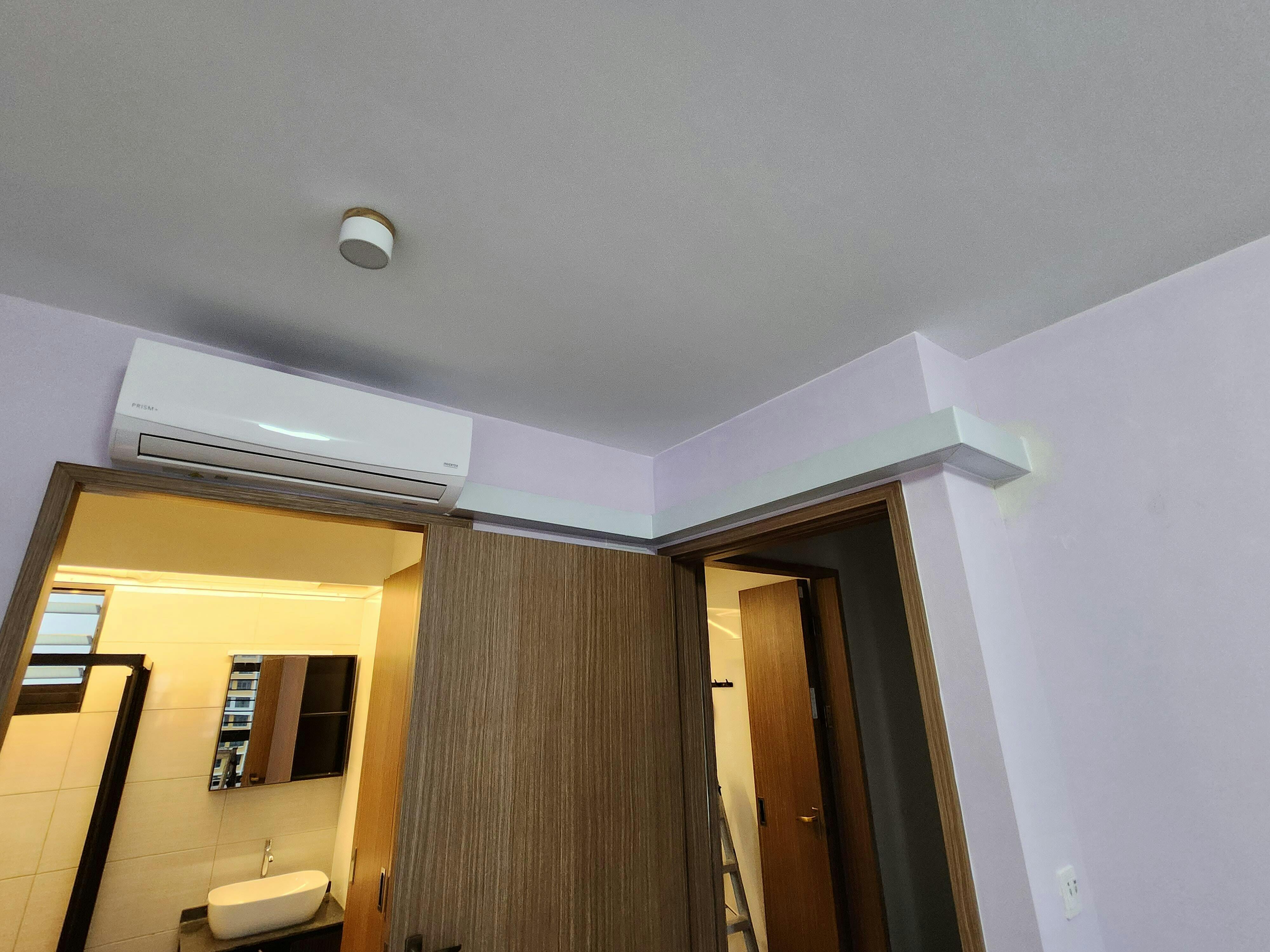

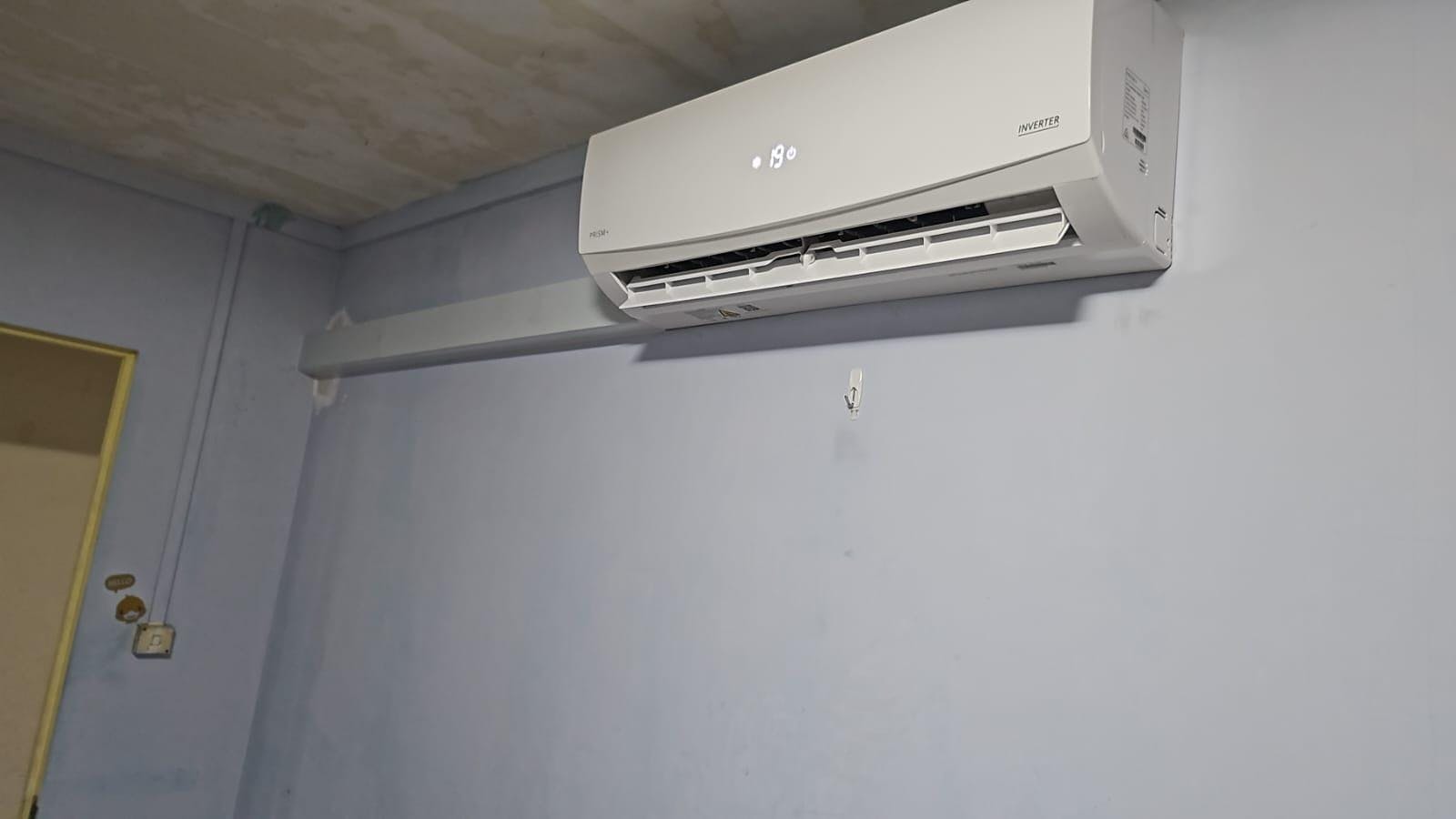

Great workmanship from the installers. Very clean & neat installation from the team. Even I have requested a last minute change on the position of the Aircon unit, they comply & complete the job with satisfaction. Thanks to Choon & his guys for their great work overall 👍

Z
Z.J.S.
Good and great service

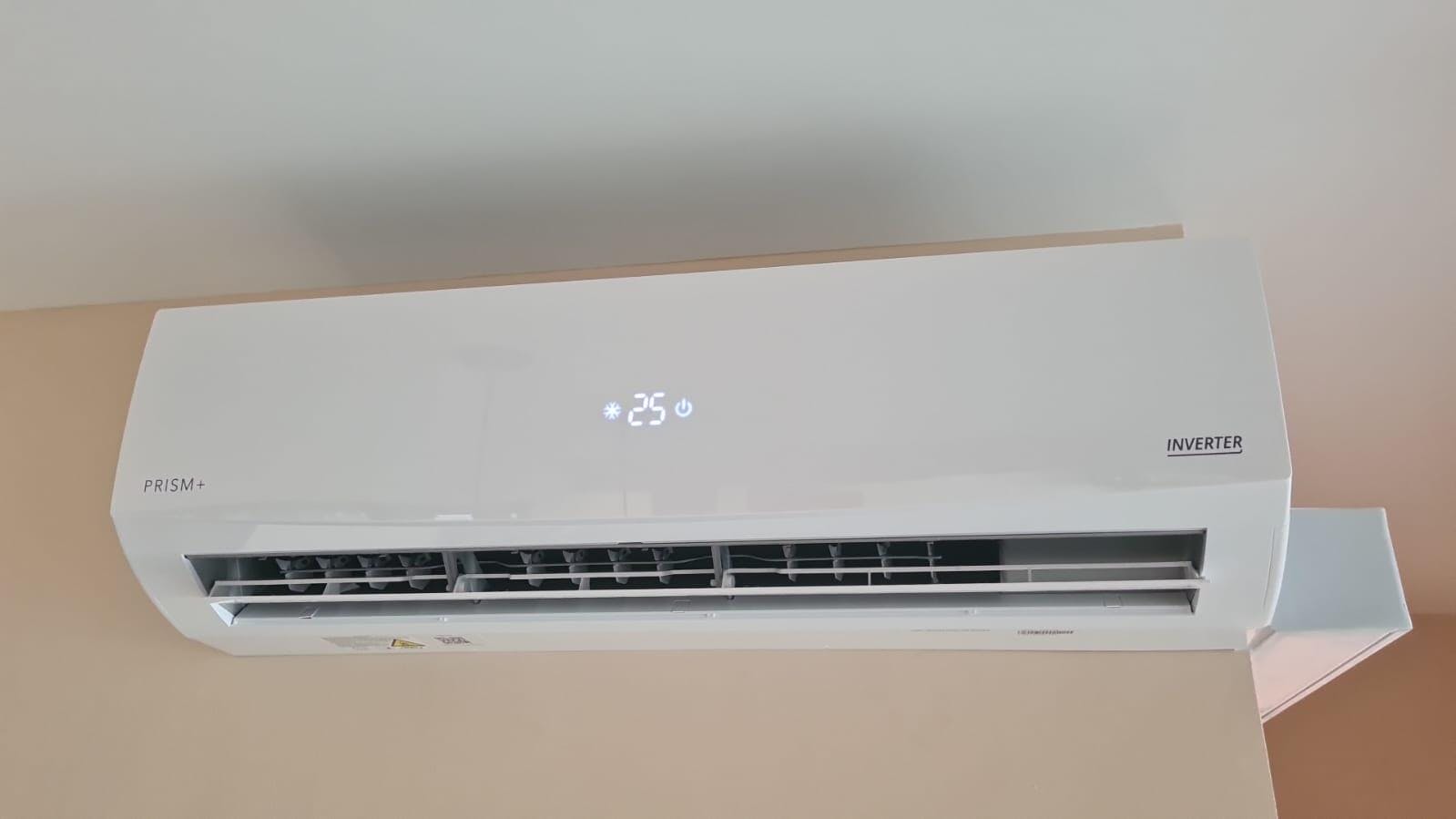

Choon and his team are very professional and provide good advice to meet my needs. Fast installation and great service. Strongly recommended!!
