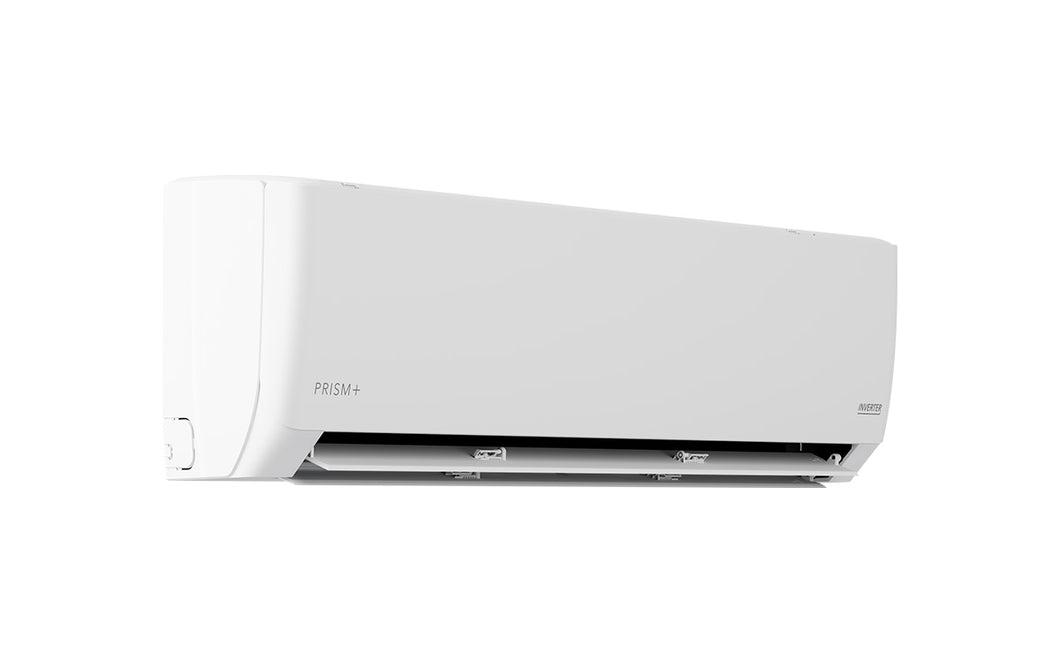

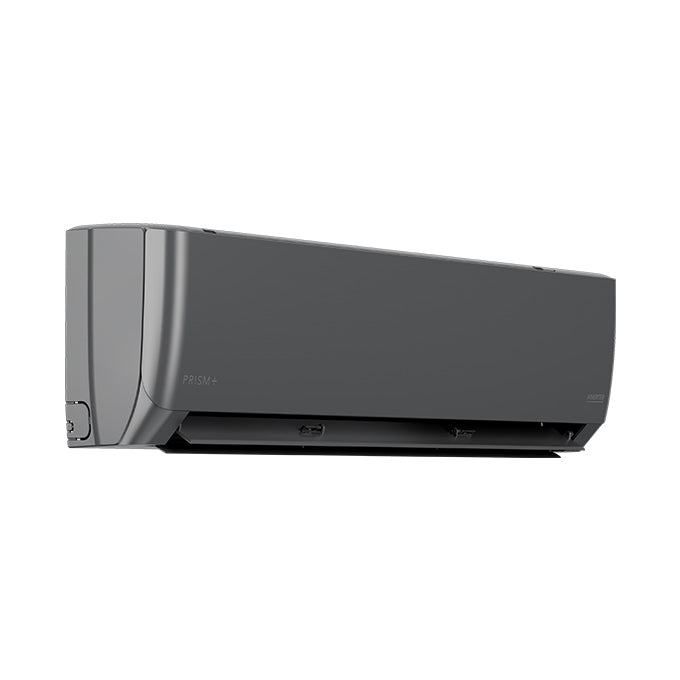

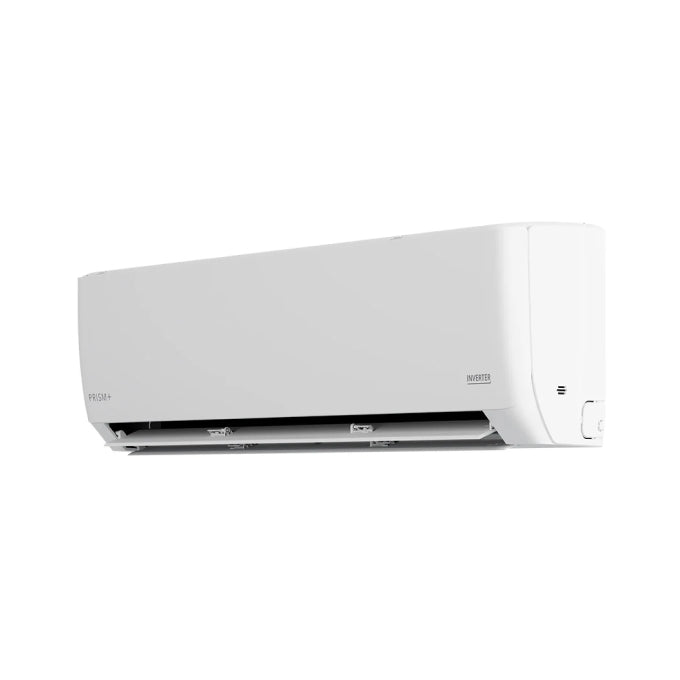

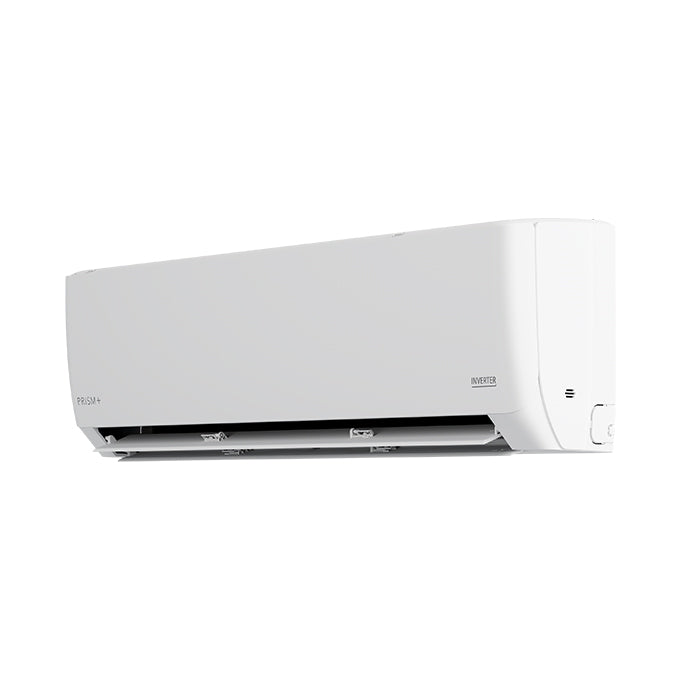

PRISM+ Neo Smart Air Conditioner (R32, 5-ticks)

×

PRISM+ Neo

Technical Information

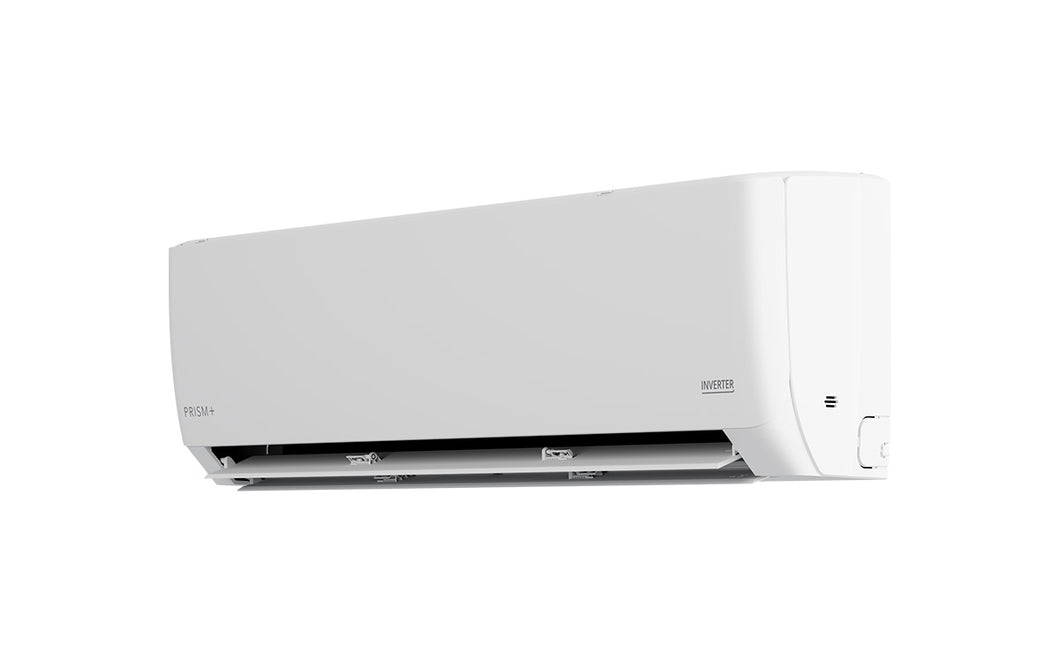

Indoor Unit

Model PRFN09 PRFN12 PRFN18 PRFN24
Capacity (Cooling) 2.70 kW 3.55 kW 5.275 kW 7.10 kW
Capacity (Cooling) 9,200 btu/h 12,100 btu/h 18,000 btu/h 24,200 btu/h
Air Flow Volume (SH/H/M/L) 700 / 630 / 560 / 490 / 420 / 390 / 360 m3/h 720 / 630 / 560 / 490 / 450 / 420 / 390 m3/h 1100 / 950 / 870 / 820 / 770 / 610 / 570 m3/h 1450 / 1100 / 1050 / 950 / 900 / 850 / 800 m3/h
Sound Pressure Level (SH/H/M/L) 42 / 38 / 36 / 33 / 28 / 24 / 22 / 16 dB(A) 45 / 39 / 37 / 35 / 33 / 31 / 25 / 18 dB(A) 47 / 44 / 41 / 38 / 35 / 32 / 29 dB(A) 51 / 45 / 43 / 40 / 36 / 34 / 32 dB(A)
Dimension Outline
(WxHxD)
825 x 293 x 196 mm 825 x 293 x 196 mm 982 x 311 x 221 mm 1075 x 333 x 246 mm
Net Weight / Gross Weight 9.5kg / 11.5kg 9.5kg / 11.5kg 12.5kg / 15kg 15.5kg / 18.5kg

Technical Information

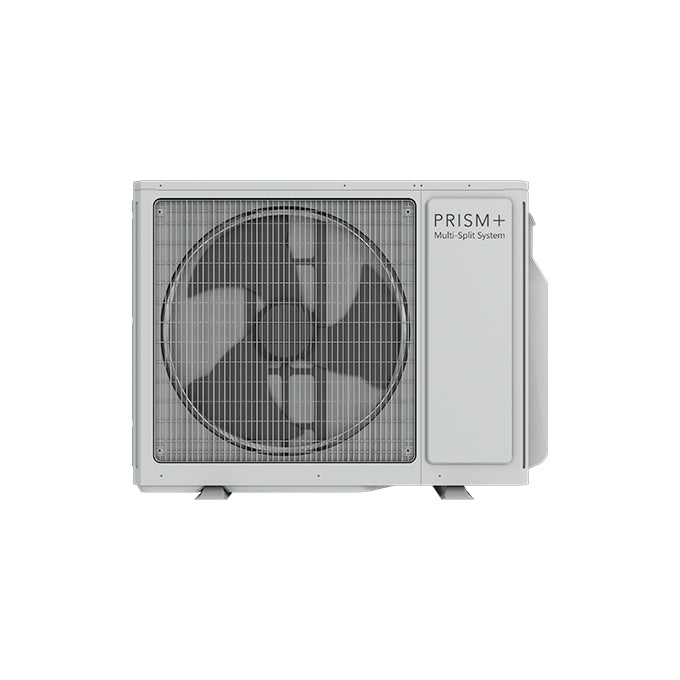

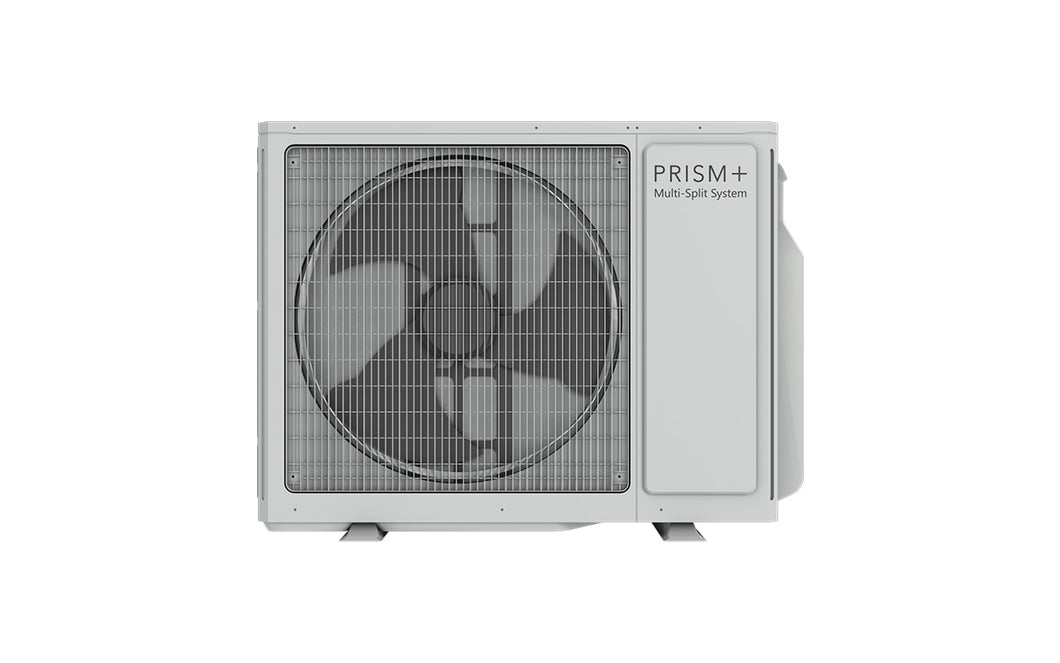

Outdoor Unit

Model PRCN28 PRCN36
Capacity (Cooling) 6.2 (2.1-8.3)kW 7.2 (2.2-10.55)kW
Capacity (Cooling) 21000 (7200-28300) btu/h 24600(7500-36000) btu/h
Running Current PRCZ28 - 5.93A PRCZ36 - 6.86A
Power Input (Cooling) 1.270 kW 1.480 kW
Refrigerant Charge Volume 1.6kg 1.7kg
Air Flow Volume 3800 m3/h 3800 m3/h
Sound Pressure Level 54 dB(A) 54 dB(A)
Dimension Outline (WxHxD) 964 x 660 x 402 mm 964 x 660 x 402 mm
Net Weight / Gross Weight 46.5kg / 51.0kg 48.0kg / 52.5kg

Warranty

Standard Warranty 1 year on Fan Coil Unit, 5 years on Compressor Only
(Labour and Transport Included)

Common Additional Charges

Below, you'll find a list of typical supplementary fees displayed in the table. Any additional charges not visible in the table that may be necessary will be communicated and validated by our air conditioning experts during the on-site assessment. Invoice will be sent by the ops team after site survey.

Installation Type Price Unit Installation Details
Non HDB installation $150 Per Aircon Unit
Priority Installation Charges (Install within 7 - 14 days) $250 Flat Fee Per Purchase
Aircon Pressure Test $120 Per Set of Piping Pressure test on existing refrigerant pipes to check for gas leakage. Gas top-up not included.
Ceiling/Partition Work $80 Per Hole Cut, patch, and touch up paint for each ceiling hole. Use Nippon Matex White 9102 paint only.
Extra Trip - Installation $180 Per Day Extra trip required for installation.

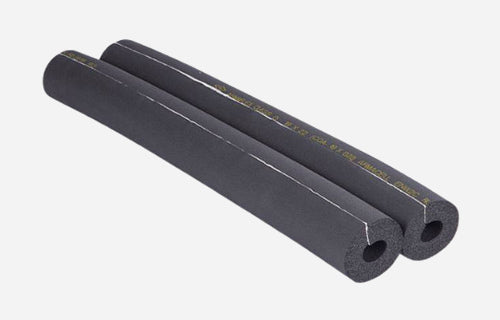

Insulation Upgrade - 3/4" Armaflex Class "0" Insulation $100 Per Aircon Unit Upgrade insulation thickness to 3/4".
Long Pipe Run From $150 Per Route For piping routes that exceed 15m in length.
Modification of Cornice (with Patching) $150 Per Cornice Cut, patch, and touch up paint for each modified cornice. Use Nippon Matex White 9102 paint only.
Outdoor Unit Bracket From $180 Per Bracket Installation of outdoor unit brackets; removal of existing brackets will be complimentary.
Pelmet - Creation $300 For 1 Pelmet Hole Cut, patch, and touch up paint for each pelmet hole. Use Nippon Matex White 9102 paint only.
$250 Per Pelmet (More Than 1 Hole)
Replacement of Aluminium Sheet and Plywood Panel (Window Opening Bracket) $100 Per Window Opening Installation of aluminium sheet and plywood panel to cover window openings; removal of existing panels will be complimentary.
Working at Height $250 Per Indoor/Outdoor Unit For placement of indoor or outdoor units 3.5m above ground.
In Stock: Running Low!
Few Units Left, Hurry!
Pre-Order: Cancellation Guarantee
$2,599
voucher-icon $2,399
voucher-icon $2,199
$3,299 Up to 21% OFF!

As a direct-to-consumer brand, we convert any costs that would have gone to a middleman into savings for you. Save up to Up to 33% OFF vs retail stores.

4x $650 w/ grab pay
grabpay No Hidden Fees
grabpay Earn Rewards
grabpay Flexible Payment

What you pay today

$0

if you choose to pay next month with PayLater postpaid

or

$650

if you choose to pay in 4 interest-free installments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Grab as your payment method.
or 3x $866 w/ grab pay
grabpay

Pay for your purchase in 3 interest-free instalments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Atome as your payment method.
From 3x $766 w/ grab pay or 4x $574 w/ grab pay

Maximize Your Savings & Lower Your Upfront Cost

1 PROMO CODES

Proceed to checkout & key in the promo code

PRISM200$200 off 2 units only

PRISM400$400 off 3 units + freebies

PRISM500$500 off 4 units + freebies

SAVER200$200 off 2 units only

SAVER650$650 off 3 units only

SAVER850$850 off 4 units only

SAVER700$700 off Multi-system (Sys 2 largest)

SAVER900$900 off Multi-system (Sys 3 largest)

SAVER1000$1000 off Multi-system (Sys 4 largest)

2 SPLIT YOUR PAYMENT

Select Atome or Grab & checkout on their app

3x payments grab pay 4x payments grab pay

*Transactions above $3,000 will have to be paid in full via GrabPay Wallet.
PayLater by Grab transactions are subjected to a maximum limit of $3,000.

Cool your home effortlessly with our first 5 ticks smart aircon, complete with a dedicated app and inverter technology to help you save more.

Cool your home effortlessly with our first 5 ticks smart aircon, complete with a dedicated app and inverter technology to help you save more.

grabpay No Hidden Fees
grabpay Earn Rewards
grabpay Flexible Payment

What you pay today

$0

if you choose to pay next month with PayLater postpaid

or

$649

if you choose to pay in 4 interest-free installments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Grab as your payment method.
grabpay

Pay for your purchase in 3 interest-free instalments

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Atome as your payment method.
pacepay

Pay for your purchase in 3 interest-free instalments.

Here’s how it works:

  • 1. Pick your preferred product and proceed to checkout.
  • 2. Apply your PRISM+ promo code.
  • 3. Select Pace as your payment method.
bnpl-codes bnpl-codes
bnpl-codes bnpl-codes
bnpl-codes bnpl-codes
oasis-sizes
oasis-sizes

Ceiling Fan Size & Clearance

oasis-sizes oasis-sizes

*A minimum clearance from the tip of the blades to the nearest ceiling fixture is critical to allow unrestricted airflow and to prevent unwanted noise or fan wobbling.

oasis-sizes
oasis-sizes
btu-combination btu-combination

Smart
Home App

5 Tick Energy

Efficiency

R32 Eco-Friendly

Refrigerant

17.1 dB

Low-noise

5 Steps

Purification

4-in-1

Filter

Humidity

Sensor

Up to 8 Years

Warranty

prism-nova
prism+

The First Local Smart Aircon

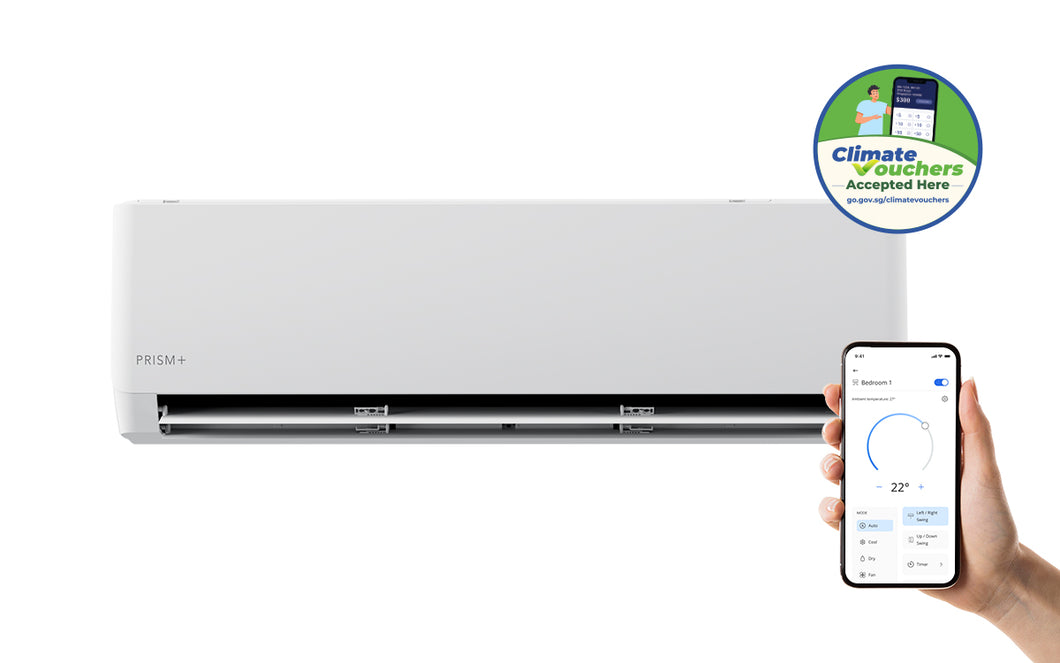

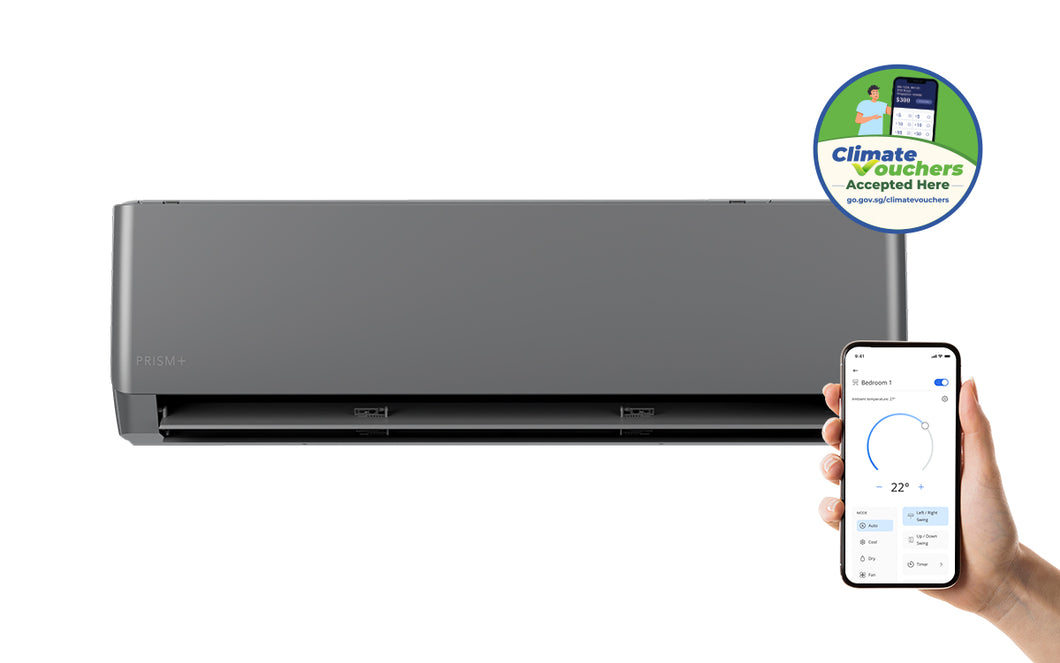

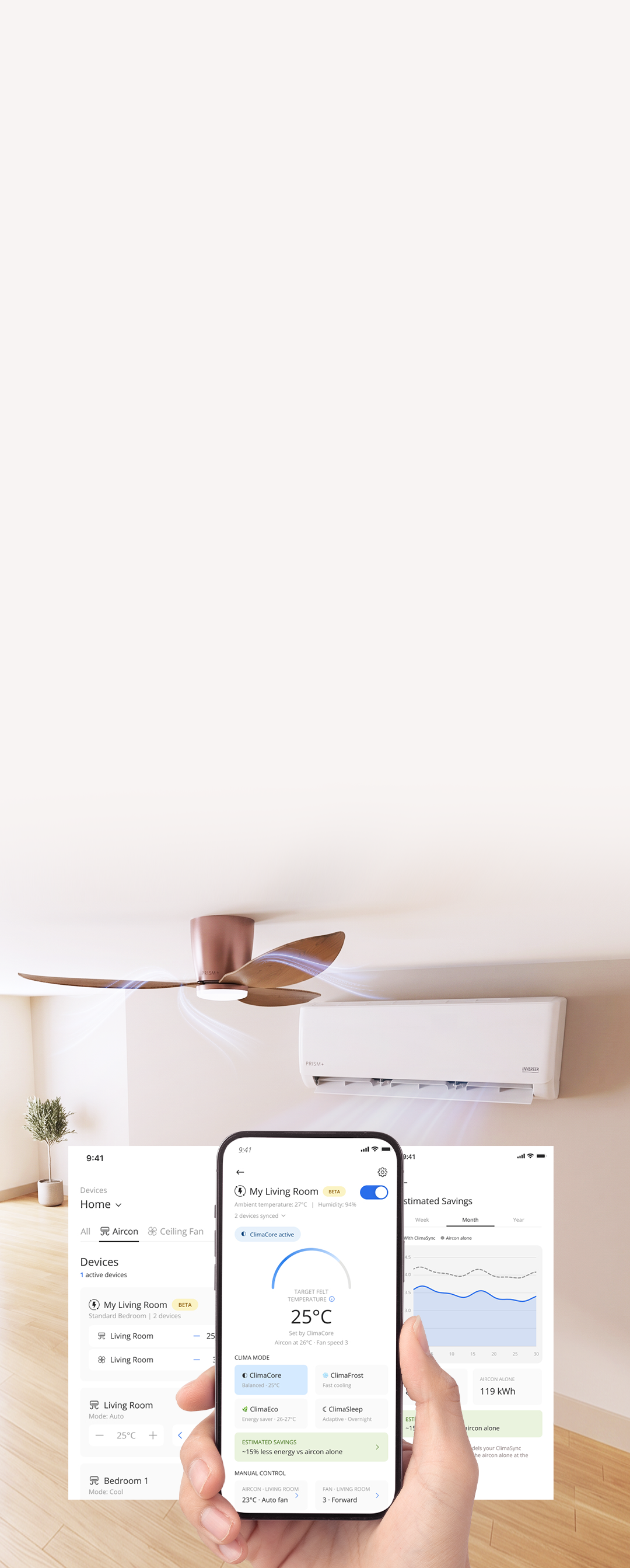

Breathe new life into your home with the PRISM+ Neo—featuring 5-step purification for powerful cooling, healthier air, and energy efficiency. Easily controlled via the PRISM+ Connect App and available in Matte White or Space Grey.

prism-nova
prism+
As Low as 17.1dB*

Singapore's Quietest Aircon

The PRISM+ Neo operates at ultra-low noise levels of 17.1dB*, making it one of the quietest in the market. Perfect for bedrooms and nurseries, simply activate Quiet Mode to keep your nights cool and undisturbed for a peaceful sleep.

*9K BTU Indoor Unit.

pdp-image pdp-image

*Smart devices are only compatible with 2.4GHz band

prism+
8 Years Warranty

Quality You Can Trust

Enjoy the longest and most comprehensive aircon warranty program with PRISM+. Enjoy up to 8 years of coverage on both indoor and compressor units by opting for quarterly servicing of your aircon with us.

prism-nova
prism+
Eco-Friendly R32 Refrigerant

Better for the Environment

When compared to other commonly used aircon refrigerants, R32 has zero ozone depleting potential. Being low-toxic it is less volatile and easier to reuse and recycle. Best of all, it helps save on your bills with less refrigerant required per kilowatt.

prism-nova
prism+
5 Ticks Energy Rating

Cool Rooms, Low Bills

Awarded 5 ticks for energy efficiency, our inverter system uses significantly less energy than a non-inverter aircon. Just set your preferred temperature, and the compressor will automatically adjust to heat or cool your surroundings.

prism+
5 Steps Air Purification

Fresher, Cleaner Air

STEP 1: Initial Filtration

Overhead filter blocks airborne impurities.

STEP 2: Deep Cleaning

4-in-1 filter removes 99.97% of dust, allergens, and bacteria.

STEP 3: Colasma Technology

Cold plasma neutralises viruses and eliminates odours.

STEP 4: Self-Cleaning Evaporator

Efficiently condenses, freezes, sterilises, and defrosts to remove dirt and odours.

STEP 5: Easy-Clean Design

Clasped air outlet allows quick disassembly and cleaning.

prism-nova
prism+
Powerful & Smart Cooling

Comfort in Every Corner

Perfect for the whole family, it delivers 3D airflow with up to 12m coverage and 7 adjustable fan speeds. Paired with advanced ambient and humidity sensors for adaptive cooling comfort and smarter energy use.

monitor x240 - 10

iFeel Function

Detects ambient temperature via remote sensor and adjusts cooling to regulate temperature differences—increasing comfort while improving energy efficiency.

monitor x240 - 10

Advanced Humidity Sensor

Equipped with a high-precision sensor, it lets you monitor and control humidity in real-time—maintaining comfort and saving energy without overcooling.

prism-nova
prism+

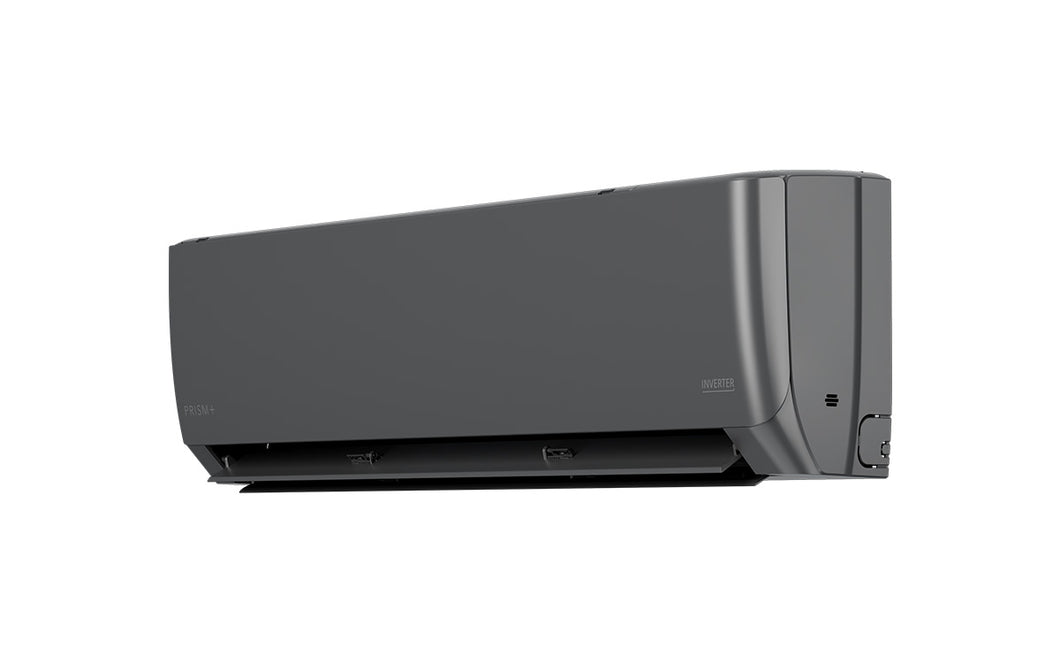

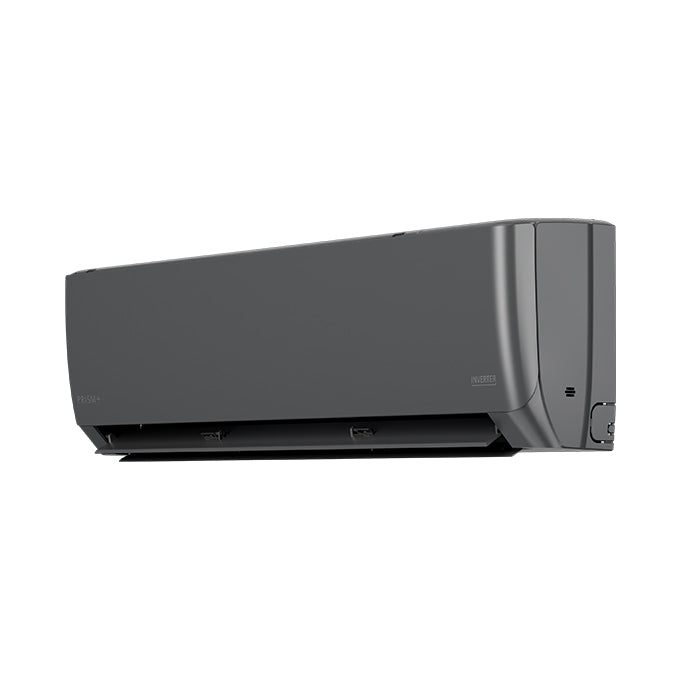

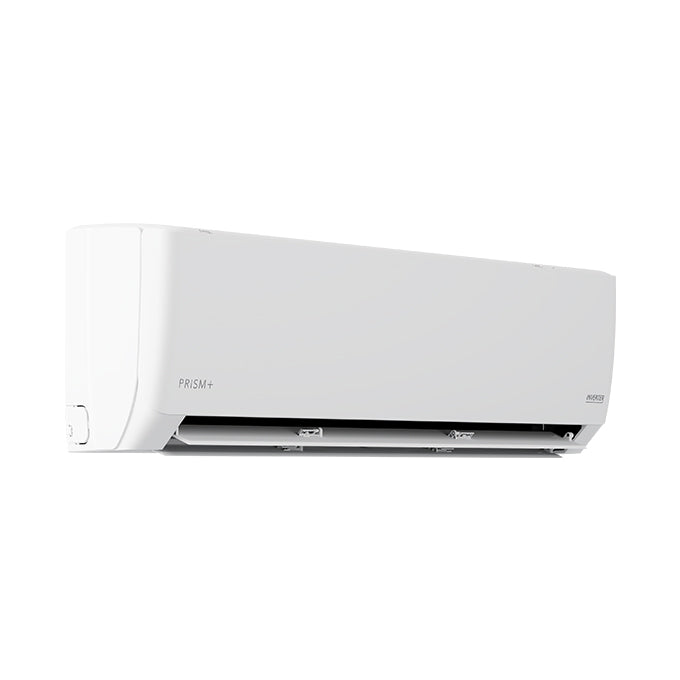

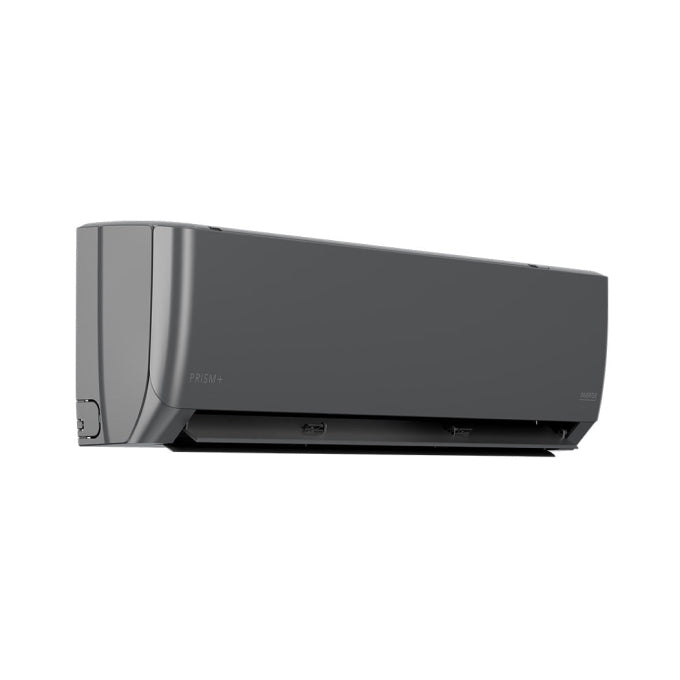

Colour Options

Modern Simplicity

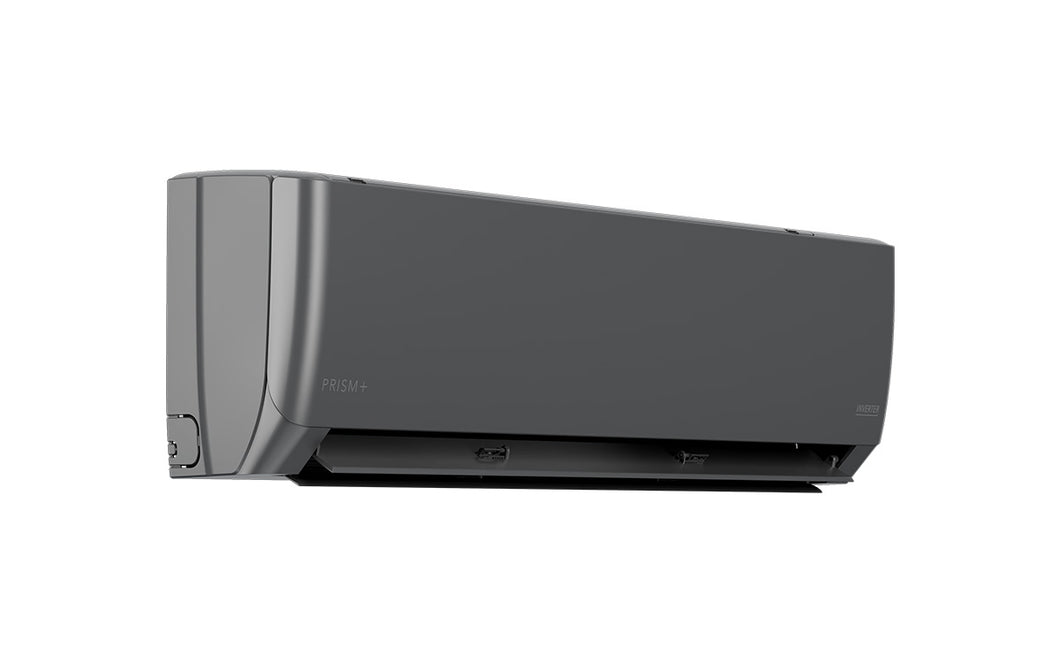

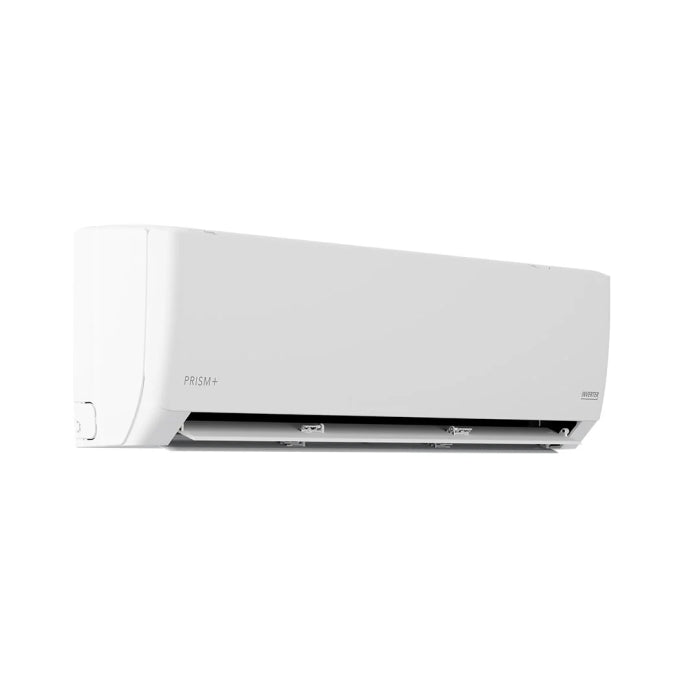

Made for more than just cooling, it's designed to elevate modern living. Available in Matte White and Space Grey, its sleek, minimalist design blends seamlessly into both light and dark interiors.

prism+
Obsidian Seal Technology

Built to Last

Engineered with Obsidian Seal Technology, the compressor is fortified with five protective layers of antibacterial and anti-corrosive materials. This provides exceptional resistance to corrosion, heat, and UV for long-lasting performance.

prism-nova
prism+
In-house Maintenance

Trained Professionals

To better serve you, the maintenance of all aircon units is done by our experienced PRISM+ Aircon Servicing Team. Enjoy free gas top ups twice a year.
